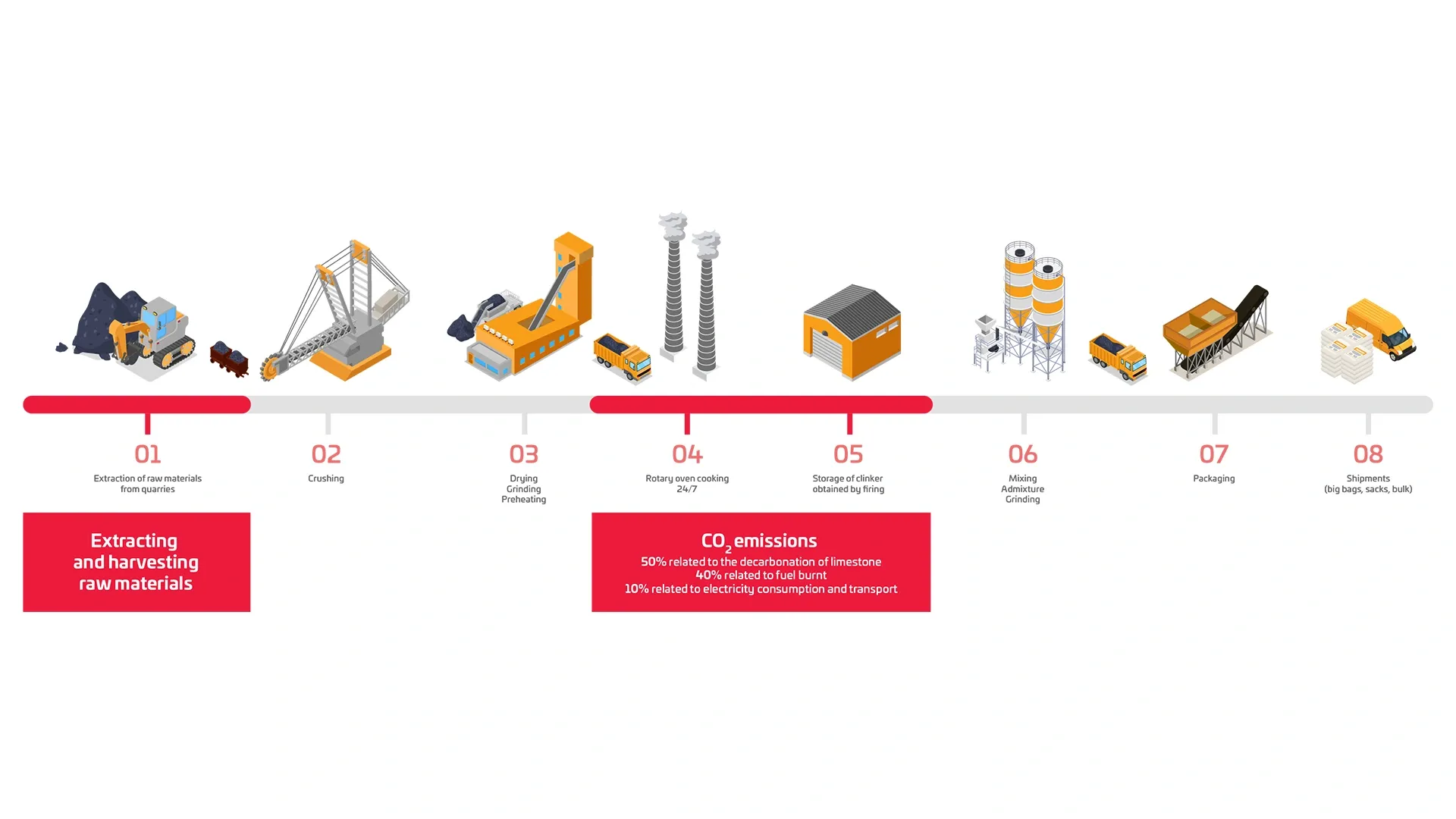

Cement Production Process: From Extraction to Packaging

In summary, cement production includes these key steps: selecting and extracting appropriate raw materials, chemical composition homogenization, milling and feed preparation, preheating and calcination, firing in a rotary kiln and clinker production, efficient cooling, final grinding with gypsum and additives, and finally, storage and packaging. Throughout this process, quality management systems (QMS), continuous monitoring (e.g., XRF/Blaine/compression resistance analysis), and safety, environmental, and energy efficiency considerations play pivotal roles.

Why is this process so important?

• Concrete quality and structure durability directly depend on the consistency and fineness of cement.
• Production economics are optimized through intelligent mine design, choosing the right mill (Ball/VRM), and efficient heat recovery (WHR).
• Environmental sustainability improves by reducing the “clinker factor”, utilizing pozzolans and alternative fuels.

Next, we’ll walk through this chain step by step and in practice: from exploration and extraction to packaging. For each step, we discuss technical objectives, control parameters, common errors, and improvement strategies—making it applicable both for technical teams and understandable for managers and the general public.

Step 1: Exploration and Selection of Quarry

Cement production begins deep in the earth, where the best deposits of limestone, clay, and corrective materials must be identified. The quality of this initial selection determines the entire production route.

Resource Identification

• Limestone (CaCO₃): The main source of calcium oxide (CaO), forming around 75% of cement composition.
• Clay or Shale: Provides silica (SiO₂), alumina (Al₂O₃), and iron oxide (Fe₂O₃).
• Correction materials: Such as bauxite (for alumina), iron ore, or silica sand to adjust the chemical ratios.

Geological and Geochemical Assessments

• Core drilling for evaluating quality and thickness of deposits.
• XRF analysis to precisely determine oxide percentages.
• Block model mapping to predict deposit uniformity.

Key Criteria for Selecting the Right Quarry

• Proximity to the plant: Raw material transportation is costly (large volume + low value).
• Consistent quality: Major chemical variations throughout the quarry cause difficulties in stable clinker production.
• Infrastructure access: Nearness to roads, railways, water, and electricity.
• Environmental factors: Distance from residential areas, groundwater sources, and forests.

Practical Examples (Iran, Turkey, Russia)

• Iran: Most plants are situated near large limestone mountains (like Zanjan or Fars) due to proximity to vast resources and reduced transportation costs.
• Turkey: Plants are concentrated near ports (such as Izmir) to facilitate cement exports.
• Russia: Due to geographical vastness, plants typically rely on local quarries to cut heavy transport costs.

Step 2: Extraction and Primary Crushing of Raw Materials

After choosing a suitable quarry, the extraction of raw materials begins—the point where real industrial operations start.

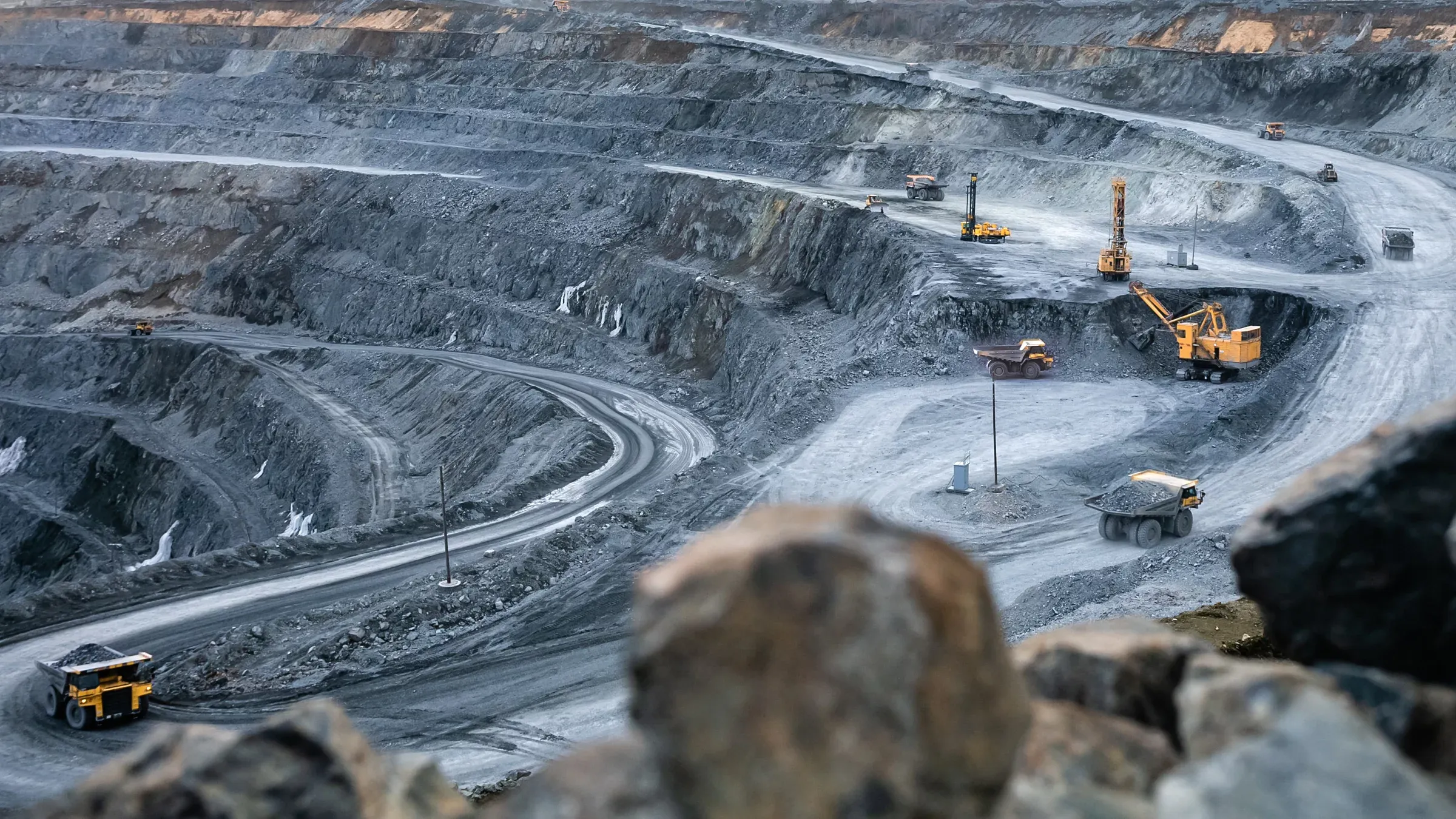

Raw Material Extraction

• Blasting and drilling methods: For limestone quarries, drilling followed by controlled blasting is common. This converts large rocks into transportable sizes.
• Mechanical extraction: For small quarries or materials like clay and shale, machinery such as excavators or loaders is used.

Transport to the Plant

• Extracted materials are transported by mine trucks, conveyor belts, or even small railways to the plant or primary crusher location.
• In countries like Iran, cement plants are built close to quarries to keep haulage costs low. In Russia, where distances are greater, rail transport is more widespread.

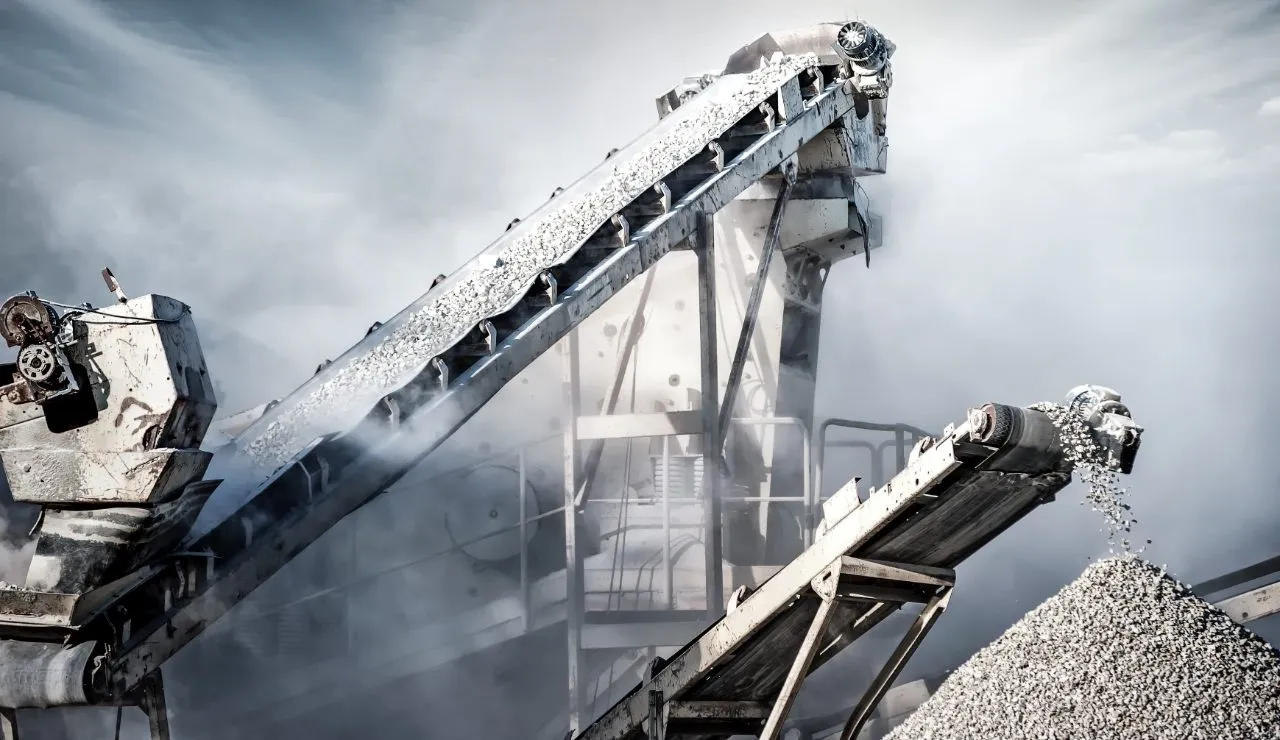

Primary Crushing

• Large stone pieces (sometimes up to 1 meter in diameter) enter a jaw or hammer crusher.
• The crusher output is material about 10–15 cm in size, suitable for further processing.

Importance of This Step

• Material Uniformity: If rocks remain too large, subsequent mills become overloaded and energy consumption spikes.
• Efficiency Gains: Primary crushing ensures better quality homogenization and final grinding.
• Environmental Impact: Uncontrolled blasting produces dust and noise pollution, so many modern plants opt for low-explosive technologies to minimize impacts.

Step 3: Homogenization and Storage of Raw Materials

After primary crushing, the raw materials are ready to enter one of the most critical stages: homogenization. This step is vital because the final cement quality is largely dependent on the uniformity of the raw mix.

Feeding to Primary Mills

• Crushed limestone, along with clay, shale, or other correction materials, is sent to hammer or ball mills.
• Here, materials are ground down to particles less than a few millimeters.

Precise Blending and Mixing

• Raw mix blending must follow specific formulas (e.g., the ratio of CaCO₃ to SiO₂, Al₂O₃, Fe₂O₃).
• Modern plants use computerized control systems and online chemical analysis (X-Ray Analyzer) for real-time monitoring and correction of material composition.

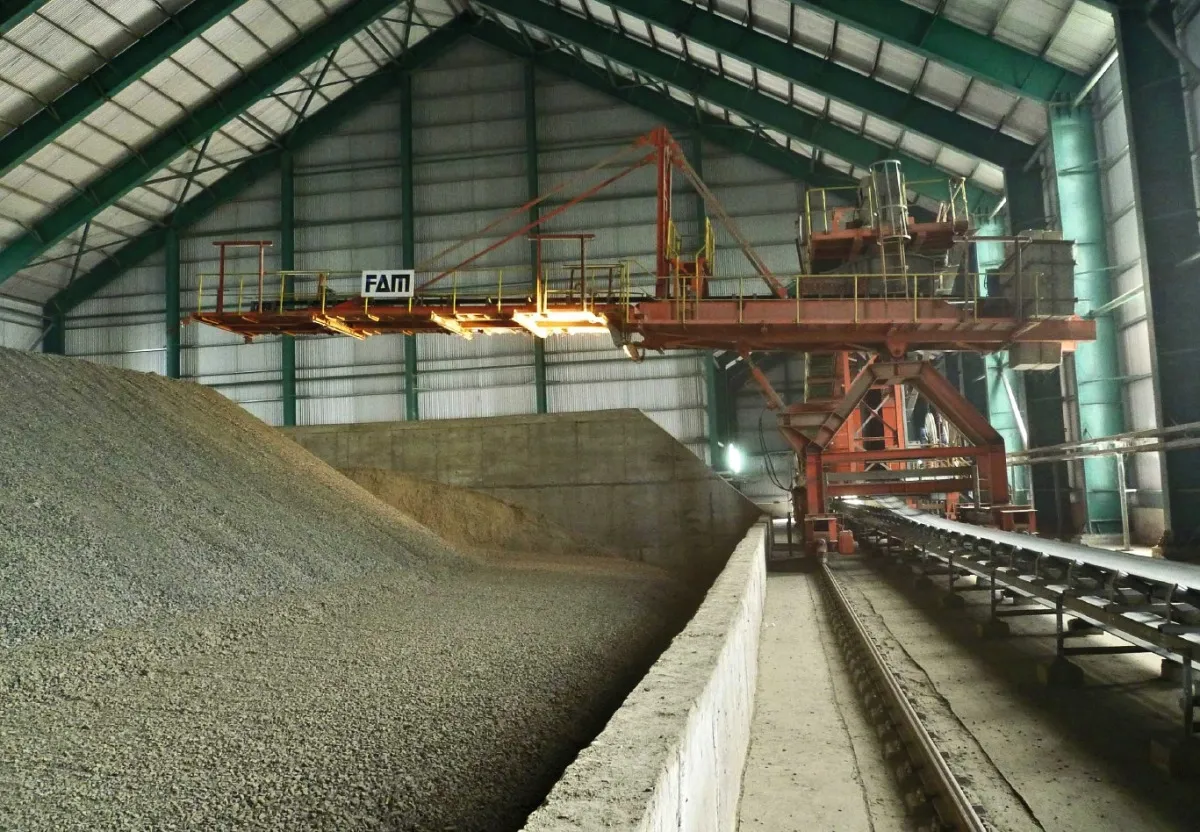

Homogenization Silos

• Ground material enters large silos, sometimes holding thousands of tons.
• Inside the silos, fluidization (air flow) or layer stacking ensures complete blending and uniformity.

Importance of Homogenization

• If raw meal composition isn’t even, in the clinker firing phase, some materials may remain raw while others over-burn.
• This imbalance reduces clinker quality, increases energy consumption, and leads to cement with lower strength and durability.

Practical Example

• Previously in Iran, many plants used old homogenization systems, limiting cement quality. Today, automation technologies have enabled much higher blending accuracy.
• In Turkey and Russia, advanced homogenization silos have become standard practice, ensuring high cement export quality.

Step 4: Clinker Production and Firing of Raw Materials

Once raw materials are well-blended, they move to the most sensitive and energy-intensive stage: kiln firing and clinker production. This phase is the heart of a cement plant, as final product quality depends most on this stage.

Here, the raw mix enters huge rotary kilns (reaching 60–100 meters long) where internal temperature rises to about 1,450°C. At this temperature, mineral compounds in the raw mix react and transform into new chemical phases.

The firing process can be described in several zones:

• Preheater Zone:
  Before entering the main kiln body, the mix passes through preheater towers. Hot exhaust gases raise the material’s temperature to about 700°C, reducing energy requirements and optimizing preparation for firing.
• Calcination Zone:
  At 850–900°C, the main reaction occurs: calcium carbonate (CaCO₃) decomposes into calcium oxide (CaO) and CO₂ gas—accounting for much of the kiln’s energy use.
• Burning Zone:
  At 1,300–1,450°C, CaO combines with silica, alumina, and iron oxide, forming the primary clinker phases such as alite (C₃S) and belite (C₂S). These compounds give cement its setting and strength characteristics.
• Rapid Cooling Zone:
  Hot clinker exiting the kiln must be quickly cooled to fix the ideal crystal structure. Grate coolers or compressed air systems are used here, and cooling rate directly affects final cement quality.

Importance of This Step

If kiln temperature, residence time, or cooling speed is not well-controlled, clinker quality will suffer. Therefore, modern plants utilize instantaneous monitoring systems and advanced burners to ensure precision.

Real-World Examples

• Some plants in Iran still struggle with high energy consumption and temperature control—directly impacting clinker quality.
• Conversely, Turkey has adopted modern kilns and heat recovery, reducing production costs and boosting export quality.
• Russia, leveraging automation, produces clinker with more uniform composition and stable quality.

Step 5: Clinker Grinding and Cement Production

After kiln firing and cooling, clinker emerges as hard, grey pellets. This semi-finished material must be ground and blended with additives to produce final cement. This is one of the most critical stages, as mill type, additive ratios, and fineness control cement’s final quality.

Clinker Grinding Process

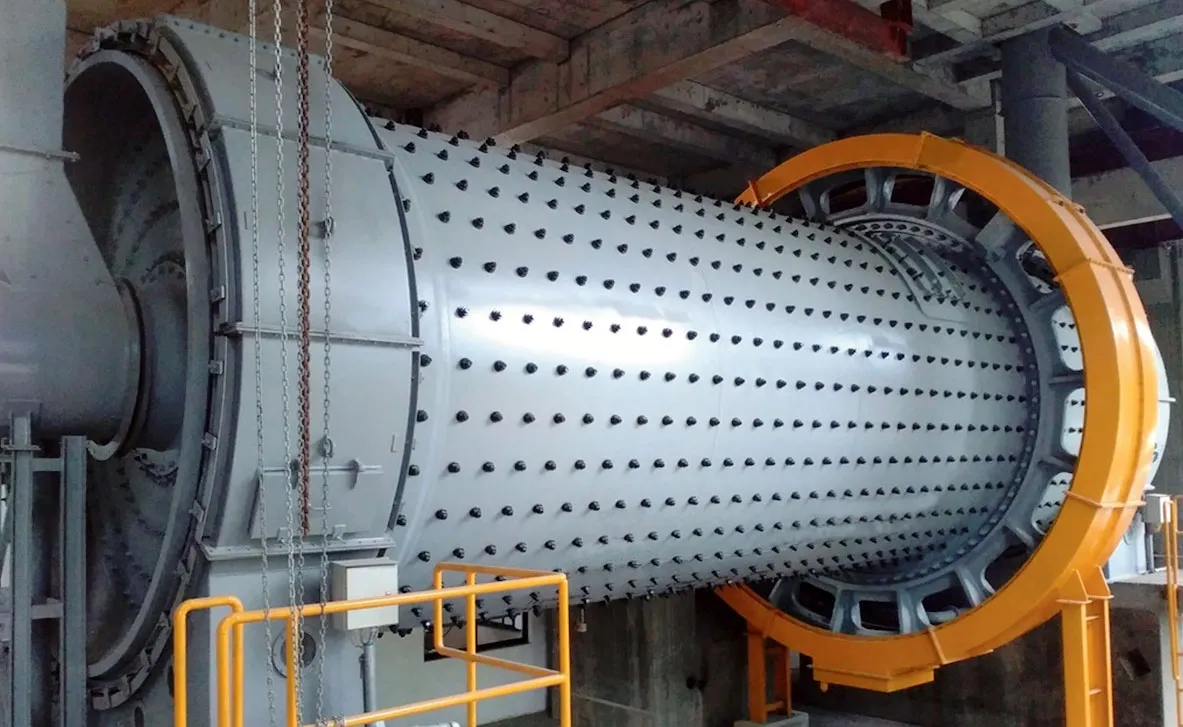

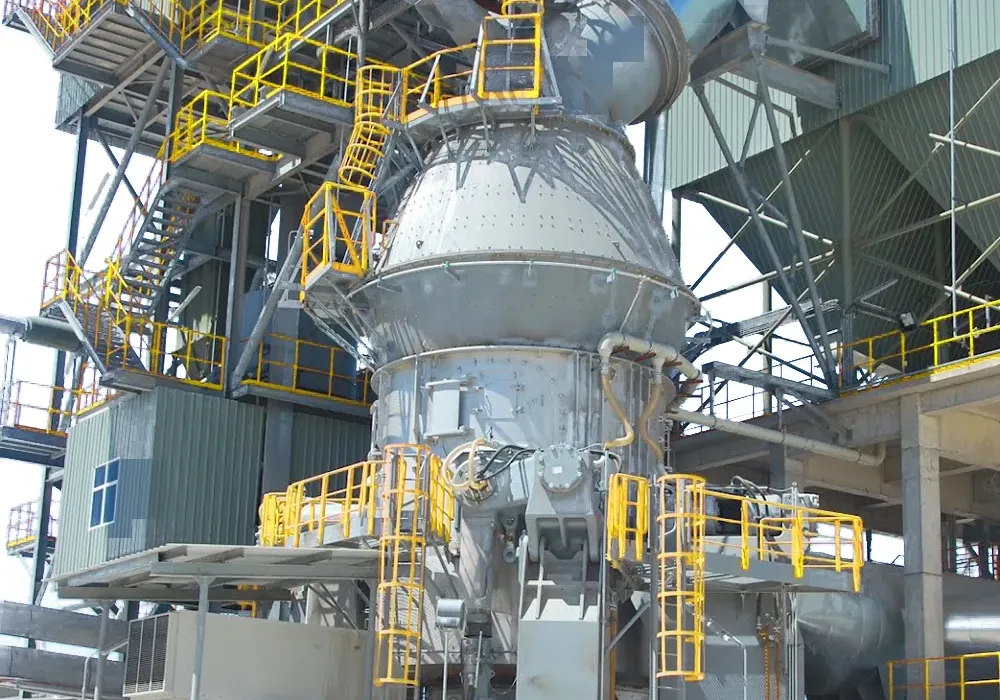

Clinker is sent to large mills (Ball or Vertical Roller Mill). Here, steel balls or heavy rollers crush it into powder. The finer the cement, the greater its contact area with water during use—leading to faster, stronger set and strength development.

Key Additives at This Stage

During grinding, other materials are added to control cement properties:

• Gypsum (CaSO₄·2H₂O):
  The main cement additive (3–5% of clinker weight) that regulates cement setting time. Without gypsum, cement would set almost instantly upon contact with water—making it unusable.
• Pozzolanic materials (such as volcanic ash or microsilica):
  Added in some plants to enhance cement’s durability against corrosive environments and reduce energy consumption.
• Blast furnace slag:
  Used in certain cements to boost sulfate resistance and lower hydration heat.

Importance of This Stage

If gypsum content is too high, cement cracks and weakens. If too low, setting occurs too quickly, making concrete handling difficult. Mill performance directly affects cement uniformity and structural strength.

Real-World Cases from Iran, Turkey, and Russia

• Iran: Some plants use modern roller mills, reducing energy use and producing very fine cement for large-scale engineering projects.
• Turkey: Due to major exports, filler composition is finely calibrated for specialized cements (e.g., sulfate-resistant or fast-setting) targeting various buyers.
• Russia: In the oil and gas sector, cement blended with specific additives like pozzolan and slag is used for maximum durability in severe environments.

Step 6: Cement Storage and Packaging

Following grinding and final production, cement must be stored to maintain quality until use. Cement is highly sensitive to moisture—even minor vapor or water contact causes lumping and renders it unusable. Thus, storage and packaging are crucial in the cement manufacturing process.

Cement Storage

After grinding, powdered cement is transferred to special concrete or metal silos. These often stand several meters tall and are equipped with aeration systems to prevent caking.

• At this stage, cement is kept in bulk and is ready for direct sale or packaging.
• In developed countries like Turkey, automated silo systems continuously monitor humidity and temperature to ensure quality.
• In Iran, many large producers like Sepahan and Tehran Cement use modern storage, though some smaller plants still suffer from inadequate systems that lower quality.

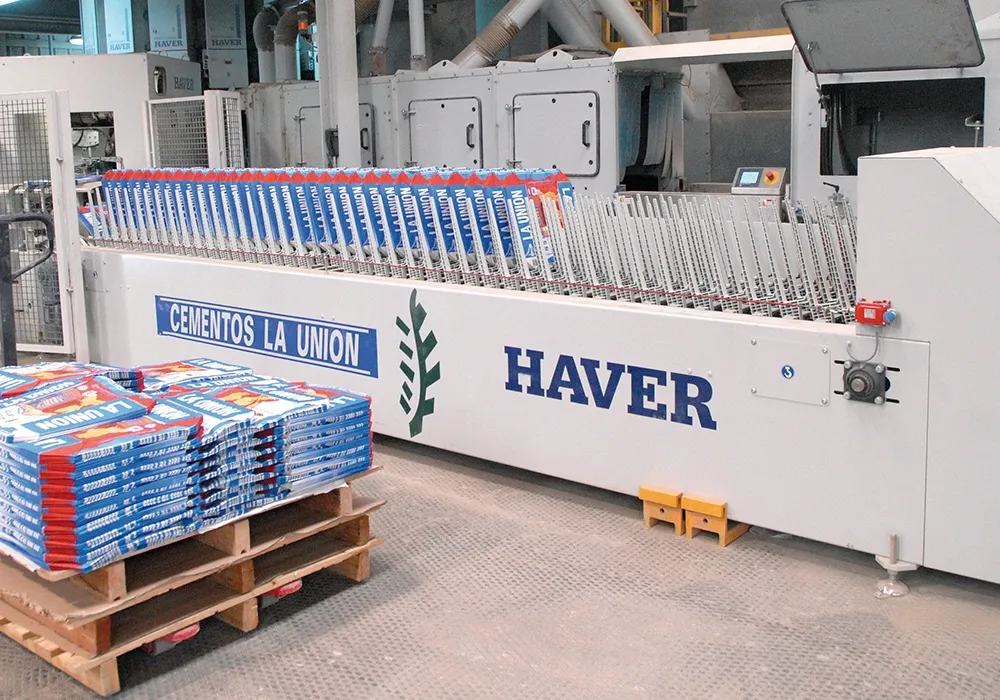

Cement Packaging

Cement is generally packed in two ways:

• Bagged cement:
  Packed into 50 kg bags (sometimes 25 or 40 kg). This is ideal for small-scale consumers and minor construction projects.
1. Bags are usually made of multi-ply kraft paper or plastic laminate to resist moisture.
2. In Russia and Turkey, wet-resistant bags are often used due to climate conditions, preventing moisture penetration even during heavy rain.
• Bulk cement:
  For large projects and ready-mix plants, cement is transported in bulk by tanker trucks—an economical method that avoids packaging waste.
1. In Iran, bulk cement is very common for major civil projects.
2. In Turkey and Russia, most exports are also bulk, reducing shipping costs.

Importance of Standard Packaging

Proper packaging protects cement quality and plays a major role in branding and exports. For example:

• Turkish companies gained strong international presence through robust, modern packaging.
• In Iran, plants with high-quality packaging are more successful in international markets.

Step 7: Cement Transportation and Distribution

After production and packaging, one of the most sensitive links in the chain arrives: cement transportation and distribution. This stage is critical for delivering product to domestic and export markets—any weakness here raises costs, lowers quality, or even forfeits market access.

Cement Transportation Methods

• Bulk transport
  Bulk cement is moved by bunker (tanker) trucks designed for powdery materials.
1. This is suitable for major civil projects, dam construction, and ready-mix plants.
2. By eliminating packaging, costs are lower.
3. But it requires adequate unloading and storage infrastructure.
• Bagged transport
  Bags are loaded on pallets or loose in trucks.
1. Best for small construction sites and minor end users.
2. Handling bags is easier but costlier than bulk.
• Marine (export) shipping
  Export cement is often shipped in bulk or one-ton big bags by cargo vessel.
1. Iran, as a major exporter, sends significant volumes to neighbors like Iraq, Afghanistan, and the Persian Gulf region.
2. In Turkey, strong Mediterranean and Black Sea port access means cement exports by sea are thriving.

Transportation and Distribution Challenges

• Moisture and rain: Cement must remain dry; moisture spoils the product.
• Fuel and transport costs: In countries like Iran, where quarries and plants are far from markets, shipping costs form a major part of end price.
• Port and rail infrastructure: Russia and Turkey use developed port and rail networks for cheap, easy export—whereas Iran still relies little on rail transport for cement.

Importance of Efficient Distribution

An efficient distribution network ensures that:

• Cement reaches customers consistently and undamaged.
• End product pricing is controlled.
• Both domestic and export markets remain stable.

Step 8: Quality Control and the Role of Trade Platforms in the Cement Industry

Quality control is the final—and one of the most critical—stages in the cement production process. No matter how precise the extraction, crushing, firing, and packaging, if the final product isn’t thoroughly tested and monitored, substandard cement may enter the market.

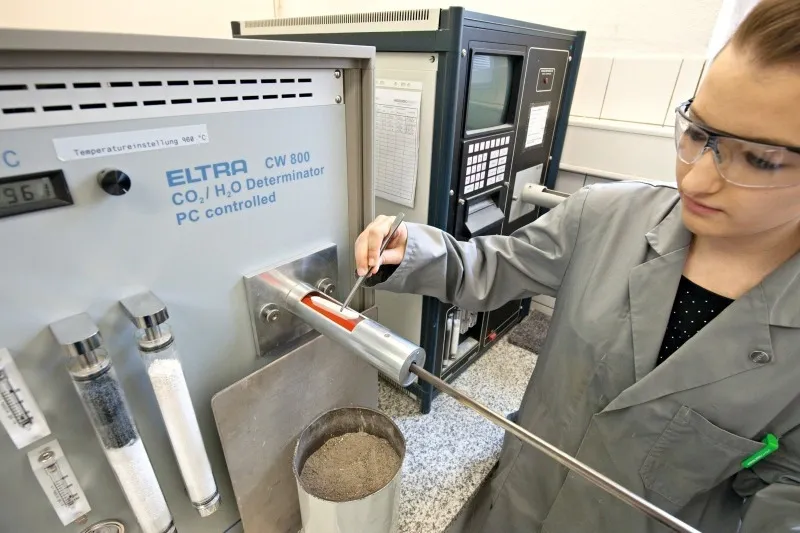

Quality Control in Cement Plants

• Chemical tests: Checking main oxides (CaO, SiO₂, Al₂O₃, Fe₂O₃) for compliance with national and international standards.
• Physical tests: Measuring particle fineness and compressive strength of mortar/concrete samples at various ages (3, 7, and 28 days).
• Packaging control: Inspecting bag thickness and protection against moisture ingress.
• Environmental monitoring: Controlling kiln and filter dust emissions to meet regulations.

These tests ensure cement not only has necessary durability but also safeguards construction safety.

The Role of Trade Platforms in Showcasing Quality Cement

In today’s world, production alone isn’t enough; properly introducing products to local and global markets is also crucial. Platforms such as SharMarket exist for this very reason.

SharMarket is a multilingual platform (Persian, English, Russian, Kurdish, Turkish, Arabic, and Chinese) that helps connect companies active in various industries, including cement. The platform:

• Enables comparison and identification of reputable cement suppliers.
• Helps companies expand their reach into international markets.
• Assures buyers and consumers that they are purchasing from trusted brands.

Conclusion

The cement production process, from raw material extraction to packaging and quality control, is a complex and precise chain, with each step playing a vital role in guaranteeing the final product’s quality. Still, producing cement alone is not enough; its successful entry and presence in the global market is equally important. In this context, platforms like SharMarket serve as a bridge between producers and global buyers, enabling the cement industry to maintain a more powerful and transparent presence internationally.
